Thermo Fisher Scientific Inc.#

Company page: Thermo Fisher Scientific Inc. Wikipedia

Thermo Fisher Scientific Inc. is an American supplier of analytical instruments, life sciences solutions, specialty diagnostics, laboratory, pharmaceutical and biotechnology services. Based in Waltham, Massachusetts, Thermo Fisher was formed through the merger of Thermo Electron and Fisher Scientific in 2006. Thermo Fisher Scientific has acquired other reagent, consumable, instrumentation, and service providers, including Life Technologies Corporation (2013), Alfa Aesar (2015), Affymetrix (2016), FEI Company (2016), BD Advanced Bioprocessing (2018),and PPD (2021).

A basic structure of the companiy, its brands and product lines looks like this:

Thermo Fisher Scientific Inc. (TFS, aka "Thermo")
├── Applied Biosystems (AB; brand)
│   └── MicroAmp
│      └── EnduraPlate
├── Fisher Scientific (FS; brand)
├── Invitrogen (INV; brand)
├── Ion Torrent (IT; brand)
├── Gibco (GIB; brand)
├── Thermo Scientific (TS; brand)
│   ├── Nalgene
│   ├── Nunc
│   └── Pierce
├── Unity Lab Services (brand, services)
├── Patheon (brand, services)
└── PPD (brand, services)

Plates#

Description


PLR definition

‘KingFisher 96 deep-well plate’
Part no.: 95040450 (non-sterile), 95040460 (sterile)
manufacturer website
Polypropylene; V-bottom; 2000 uL total well volume.
Bottom thickness and height-volume calibration still require measurement.

KingFisher 96 deep-well plate drawing

thermo_TS_kingfisher_96_wellplate_2000uL_Vb

‘Thermo_TS_96_wellplate_1200ul_Rb’
Part no.: AB-1127 or 10243223
manufacturer website

- Material: Polypropylene (AB-1068, polystyrene)

Thermo_TS_96_wellplate_1200ul_Rb

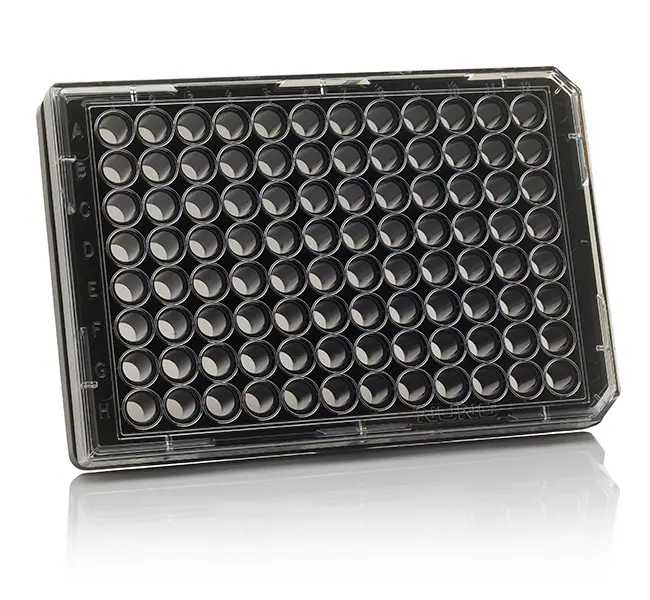

‘Thermo_TS_Nunc_96_wellplate_300uL_Fb’
Part no.: 165305
manufacturer website

Thermo_TS_Nunc_96_wellplate_300uL_Fb

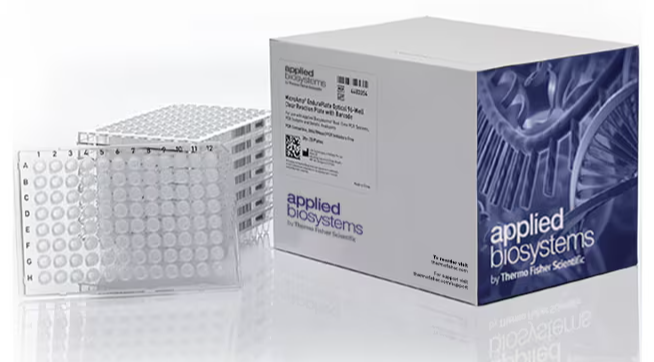

‘Thermo_AB_96_wellplate_300ul_Vb_EnduraPlate’
Part no.: 4483354 (TFS) or 15273005 (FS) (= with barcode)
Part no.: 16698853 (FS) (= without barcode)
manufacturer website

- Material: Polycarbonate, Polypropylene
- plate_type: semi-skirted
- product line: “MicroAmp”
- (sub)product line: “EnduraPlate”

Thermo_AB_96_wellplate_300ul_Vb_EnduraPlate

‘Thermo_Nunc_96_well_plate_1300uL_Rb’
Part no.: 26025X

Thermo_Nunc_96_well_plate_1300uL_Rb

‘thermo_AB_96_wellplate_300ul_Vb_MicroAmp’
Part no.: N8010560/4316813 (w/o barcode)
Part no.: 4306737/4326659 (with barcode)

thermo_AB_96_wellplate_300ul_Vb_MicroAmp

MicroAmp Fast Optical 96-Well Reaction Plate, 0.1 mL working volume
Part no.: 4346906/4366932 (with barcode), 4346907 (w/o barcode)
Manufacturer website · Engineering drawing

Barcoded MicroAmp Fast plate

thermo_AB_96_wellplate_200ul_Vb_MicroAmp_Fast

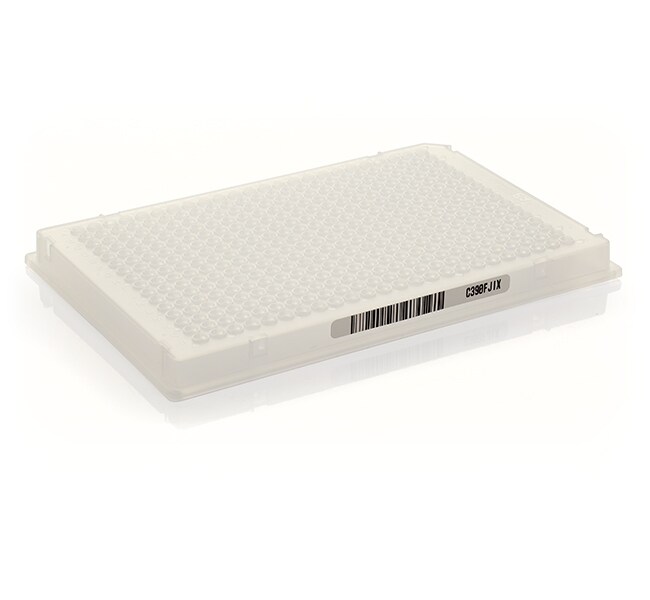

‘thermo_AB_384_wellplate_40uL_Vb_MicroAmp’
Part no.: 4309849, 4326270, 4343814 (with barcode), 4343370 (w/o barcode).

thermo_AB_384_wellplate_40uL_Vb_MicroAmp

KingFisher 96 deep-well plate#

from pylabrobot.resources import thermo_TS_kingfisher_96_wellplate_2000uL_Vb

plate = thermo_TS_kingfisher_96_wellplate_2000uL_Vb("kingfisher_dw")

The definition follows Thermo Fisher drawing 180-252M-01 for parts 95040450 and 95040460: 127.8 x 85.5 x 44 mm overall, 9 mm well spacing, 8.3 mm openings, and 42.3 mm cavity depth. The manufacturer’s FAQ specifies 2000 uL total well volume; this is not an instrument processing-volume limit.

The drawing leaves the bottom plastic thickness unspecified. Until measured, well origins provisionally sit at the inner bottom, 1.7 mm above the plate base, and operations requiring material_z_thickness remain unsupported. The 1.7 mm offset is not the plastic thickness: it also includes the clearance below the well. The rounded square openings are represented by rectangular bounds. Height-volume calibration, stacking pitch, and lid geometry are not defined. Verify the physical fit and calibrate liquid heights before using this starter definition in a liquid-handling workflow.

Troughs#

Description


PLR definition

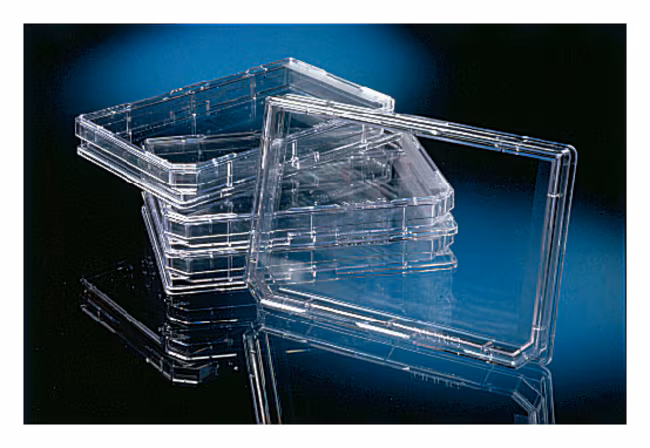

‘thermo_nunc_1_troughplate_90000uL_Fb_omnitray’
Part no.: 165218, 140156, 242811, 264728

thermo_nunc_1_troughplate_90000uL_Fb_omnitray

‘ThermoFisherMatrixTrough8094’
Part no.: 8094
manufacturer website

ThermoFisherMatrixTrough8094

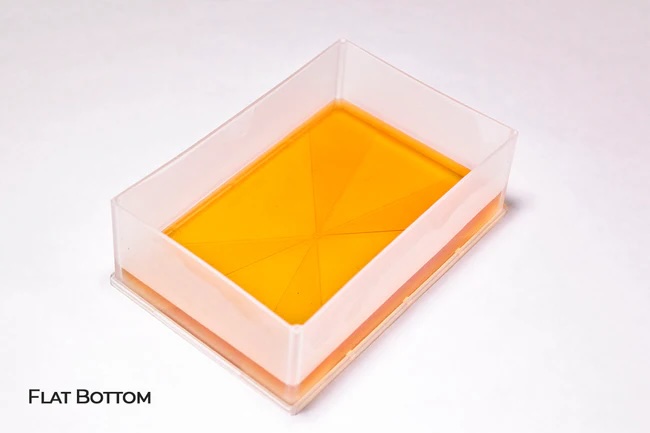

‘thermo_TS_nalgene_1_troughplate_300mL_Fb’
Part no.: 12001300 (non-sterile), 12001301 (sterile)
manufacturer website

thermo_TS_nalgene_1_troughplate_300mL_Fb

Plate Adapters#

Description


PLR definition

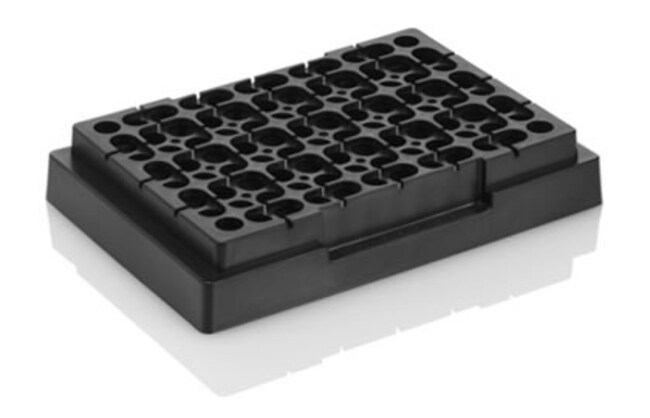

‘thermo_AB_96_plateadapter_MicroAmp’
Part no.: 4312063
manufacturer website

thermo_AB_96_plateadapter_MicroAmp
