Opentrons

Company page: Opentrons Wikipedia

Opentrons Labworks, Inc. (or Opentrons) is a biotechnology company that manufactures liquid handling robots that use open-source software, which at one point used open-source hardware but no longer does.

NB: The Opentrons Labware Library is a wonderful resource to see what Opentrons offers in terms of resources.

We can automatically convert Opentrons resources to PLR resources using two methods in pylabrobot.resources.opentrons:

• pylabrobot.resources.opentrons.load.load_opentrons_resource(): loading from a file

• pylabrobot.resources.opentrons.load.load_shared_opentrons_resource(): load from https://pypi.org/project/opentrons-shared-data/ (https://github.com/Opentrons/opentrons/tree/edge/shared-data)

In addition, we provide convenience methods for loading many resources (see below).

Plates

Note that Opentrons definitions typically lack information that is required to make them work on other robots.

• corning_384_wellplate_112ul_flat

• corning_96_wellplate_360ul_flat

• nest_96_wellplate_2ml_deep

• nest_96_wellplate_100ul_pcr_full_skirt

• appliedbiosystemsmicroamp_384_wellplate_40ul

• thermoscientificnunc_96_wellplate_2000ul

• usascientific_96_wellplate_2point4ml_deep

• thermoscientificnunc_96_wellplate_1300ul

• nest_96_wellplate_200ul_flat

• corning_6_wellplate_16point8ml_flat

• corning_24_wellplate_3point4ml_flat

• corning_12_wellplate_6point9ml_flat

• biorad_96_wellplate_200ul_pcr

• corning_48_wellplate_1point6ml_flat

• biorad_384_wellplate_50ul

Tip racks

• eppendorf_96_tiprack_1000ul_eptips

• tipone_96_tiprack_200ul

• opentrons_96_tiprack_300ul

• opentrons_96_tiprack_10ul

• opentrons_96_filtertiprack_10ul

• geb_96_tiprack_10ul

• opentrons_96_filtertiprack_200ul

• eppendorf_96_tiprack_10ul_eptips

• opentrons_96_tiprack_1000ul

• opentrons_96_tiprack_20ul

• opentrons_96_filtertiprack_1000ul

• opentrons_96_filtertiprack_20ul

• geb_96_tiprack_1000ul

Reservoirs

• agilent_1_reservoir_290ml

• axygen_1_reservoir_90ml

• nest_12_reservoir_15ml

• nest_1_reservoir_195ml

• nest_1_reservoir_290ml

• usascientific_12_reservoir_22ml

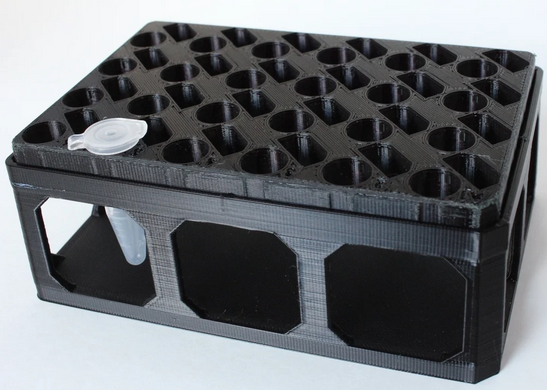

Tube racks

• opentrons_24_tuberack_eppendorf_2ml_safelock_snapcap

• opentrons_24_tuberack_eppendorf_2ml_safelock_snapcap_acrylic

• opentrons_6_tuberack_falcon_50ml_conical

• opentrons_15_tuberack_nest_15ml_conical

• opentrons_24_tuberack_nest_2ml_screwcap

• opentrons_24_tuberack_generic_0point75ml_snapcap_acrylic

• opentrons_10_tuberack_nest_4x50ml_6x15ml_conical

• opentrons_10_tuberack_falcon_4x50ml_6x15ml_conical_acrylic

• opentrons_24_tuberack_nest_1point5ml_screwcap

• opentrons_24_tuberack_nest_1point5ml_snapcap

• opentrons_10_tuberack_falcon_4x50ml_6x15ml_conical

• opentrons_24_tuberack_nest_2ml_snapcap

• opentrons_24_tuberack_nest_0point5ml_screwcap

• opentrons_24_tuberack_eppendorf_1point5ml_safelock_snapcap

• opentrons_6_tuberack_nest_50ml_conical

• opentrons_15_tuberack_falcon_15ml_conical

• opentrons_24_tuberack_generic_2ml_screwcap

• opentrons_96_well_aluminum_block

• opentrons_24_aluminumblock_generic_2ml_screwcap

• opentrons_24_aluminumblock_nest_1point5ml_snapcap

Plate Adapters

Description	Image	PLR definition
‘Opentrons_96_adapter_Vb’ Part no.: 999-00028 (one of the three adapters purchased in the “Aluminum Block Set”) manufacturer website	![](imgs/Opentrons_96_adapter_Vb.jpg” alt=”Opentrons_96_adapter_Vb” width=”250”/>	Opentrons_96_adapter_Vb
